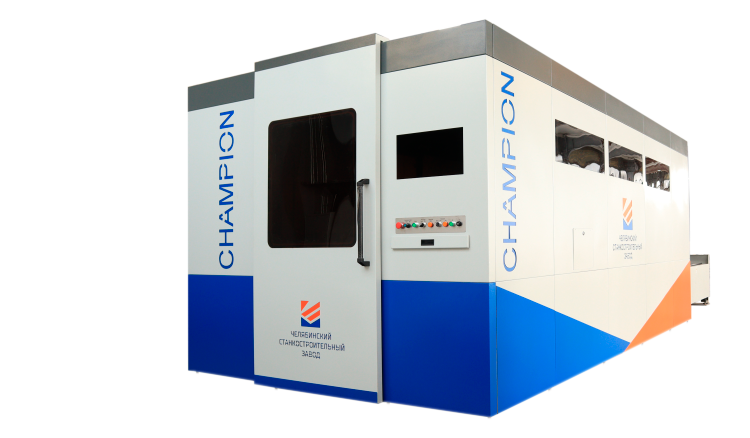

CHAMPION-3015-CET-6000W-IPG
With cabinet protection and automatic exchange tables
- Acceleration up to 1.5G
- Maximum speed of 140 m/min
- Laser power up to 15 kW
- Minimal vibrations - enables faster and more precise cutting!
- Working area: 3000x1500 mm; 6000x1500 mm; 6000x2000 mm
- Cuts sheet metal up to 30 mm
66Technical specifications
Laser type
Fiber optic ytterbium with back reflection protection
Machine working area
3000 x 1500 mm
Maximum sheet weight
800 kg
Overall dimensions LxWxH, mm
8715*2673*2670
Machine weight, not exceeding
7000 kg
Frame type
Welded, heat-treated frame with mineral-composite filling
Portal
Steel
Laser source power
Up to 3 kW in the base version; can accommodate power sources up to 6 kW
Cutting head
WSX NC63
Axis movement
X - 1520 mm, Y - 3040 mm
Positioning accuracy
±0.05 mm
Positioning repeatability
±0.025 mm
Max. speed of X, Y movement
100 m/min
Max. speed of synchronous X and Y movement
141 m/min
Drive power
X - 2.6 kW; Y - 2.6 kW (2 pcs); Z - 0.75 kW
Max. acceleration
1.5 G
Cooling system
External chiller; separate circuits for cooling the laser source and cutting head
Extraction system (gas removal)
Six-zone with automatic zone switching; pneumatic switching system
Process gases
Nitrogen, oxygen, air
Process gas selection
Automatic
Auxiliary gas
Air (for zone switching system, cooling of workpiece, and cutting head components)
Data formats
DXF, PLT, CHF, G-code
